S type load cell | S beam load cell

Years of manufacturing, testing, research and development in the load cell sensor industry ensure that simplicity, stability, and precision are maintained.

Model No.: PDLY
Capacities (T):200kg
Engineered for suspended loading
Precise accuracy: 0.03 % of FS
Alloy Steel body
Tailor made to your needs
3D CAD models are available

S-TYPE LOAD CELL | ACCURATE SUSPENDED WEIGHING SYSTEM

Characteristics

The elastomer adopts S-type beam structure. It has a compact shape, threaded design at both ends, small size, high precision, easy to install, and can meet the force measurement in the range of 1-100kg.

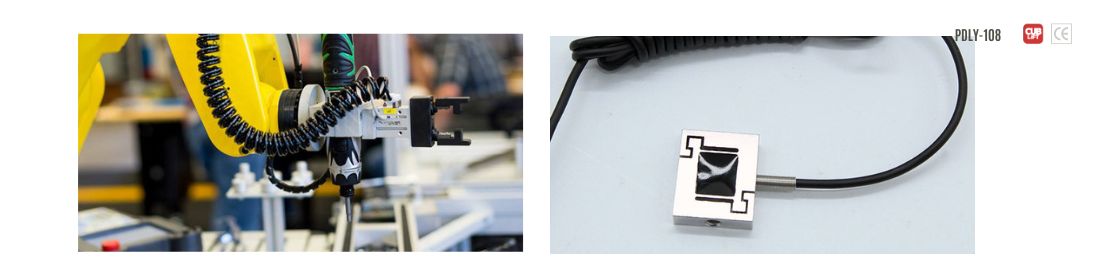

PDLY-108 S-type Load Cell Detail image (8)

Applications

Mainly used in these industries: automotive press fitting, automated assembly, 3C product testing, robot hand grip force, keyboard feel test, etc..

Capacity & Dimensions

PDLY-108 S-type Load Cell Detail image (30)

PDLY-108(Capacity) (kg) M H A B
0.5-10 M3 5 16 19.1
20-50 M4 6 16 19.1
100-200 M8 14 26 40
PDLY-108 Capacity 200kg Material stainless steels
Rated Output 1.0-2.0mV/V Impedance 350Ω
Zero Balance ±2%F.S, Insulation ≥5000MO/100VDC
Non-Linearity 0.10%F.S Operating Temp Range 5-15v
Hysteresis 0.05% F.S Operating Temp Range -20-80°C
Repeatability 0.05% F.S Safe Overload 150%
Creep(30min) 0.05% F.S Maximum Overload 200%
Temp Effecton Output 0.05%F.S./10°C Cable Specifications <100kg:Φ2x1m >100kg:Φ3*2m
Temp Effecton Zero 0.05%F.S./10°C Cable ultimate pull 10kg
Response frequency 10kHz TEDS optional

PDLY-108 S-type Load Cell Detail image (10)

Image Model Number Capacity Sensor Type Weight
Capacity Max.
Zero Balance Non-linearity Repeatability Accuracy Class Price
S Type Load Cell PDLY101 (5) PDLY-101 0-20 T S type load cell 20T ±1 %F.S. 0.05 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY101 (5) PDLY-102 0.2-1T | 2-7 T S type load cell 7T ±1 %F.S. 0.03 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY103 PDLY-103 0.2-1T | 2-5 T S type load cell 5T ±1 %F.S. 0.03 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY104 PDLY-104 0-2T | 2-10T S type load cell 10T ±1 %F.S. 0.05 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY105 PDLY-105 0-1.5 T S type load cell 1.5T ±1 %F.S. 0.03 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY106 PDLY-106 0-50KG S type load cell 50KG ±1 %F.S. 0.05 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY107 DPLY-107 0-200KG S type load cell 200KG ±2 %F.S. 0.05 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY108 PDLY-108 0-200KG S type load cell 200KG ±2 %F.S. 0.1 %F.S. 0.05 %F.S. Consumer Grade Contact Us
S Type Load Cell PDLY109 PDLY-109 0-10KG S type load cell 10KG ±2 %F.S. 0.10 %F.S. 0.05 %F.S. Consumer Grade Contact Us
S Type Load Cell PDTSC PD-TSC 50KG — 5T S type load cell 5T ±1 %F.S. 0.03 %F.S. 0.03 %F.S. Consumer Grade Contact Us
S-type Load Cell (TSH) (2) PD-TSH 0-5T S type load cell 5T ±0.05 mV/V 0.0166 %F.S. 0.018 %F.S. Consumer Grade Contact Us
